Token based security
THEOlive offers the option to enable JWT token security on channel alias level. This can be interesting if you only want valid users to access your stream.
In this document, we will
- explain how it works
- how to enable/disable it via the console and API
- how to configure your THEOplayer to pass the mandatory headers

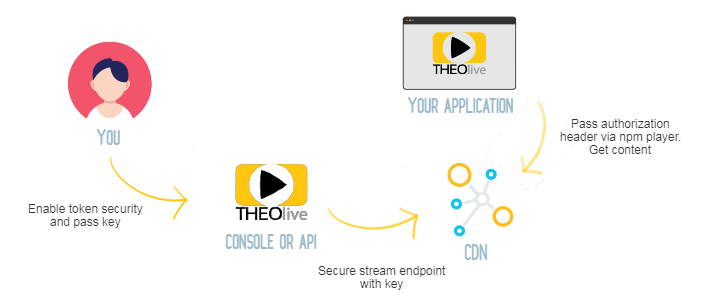

How it works
When enabling token security on a channel alias, we expect you to share the shared (private) key in case of HS256/HS512 or the public key in case of RS256/RS512 encryption. This will be used on CDN level to determine if a request (with a Bearer token passed in the Authorization header) is valid or not. It's up to you to configure this header correctly through our npm player. Later in this document we will explain how.
In the bearer token that gets sent to us, we require the following properties to be provided in the payload:
exp: date in epoch format until which the JWT token is validnbf: optional date in epoch format. Stands for "not before" and acts as a "start date" of the JWT to be valid.
When not passing a bearer token for a secured channel, the request will be rejected. If the channel is not secured, you may still pass a token but it is not required.
Putting it all together, here is an example of a token payload:
{
"nbf": 1750786626 // optional, viewers attempting to connect before this time will not be permitted
"exp": 1750796626 // required, must be a valid time in the future to allow viewer access
}
To view an example token, you can paste the following token into the jwt.io debugger:
eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJpYXQiOjE3NTA4MTM5NDAsImV4cCI6MTc1MDgxNDU0MH0.hGnLRGO09AXNzMHgHLLz1HJ-9mRfDf-PnOd20w9CQmI
It was signed with the following random secret: d2e166fdda89824a6c493d8a2af7a0754199eff9e38c579cba8783767a44039c.
Enable or disable token security for an alias
Please refer to the Enable token security for alias and Disable token security for alias API endpoints to manage the token security settings for an alias.
When enabling for the first time, you have to pass the key property in the body. If you disable token security later on, and make it active again, you can omit this property if it should stay the same.

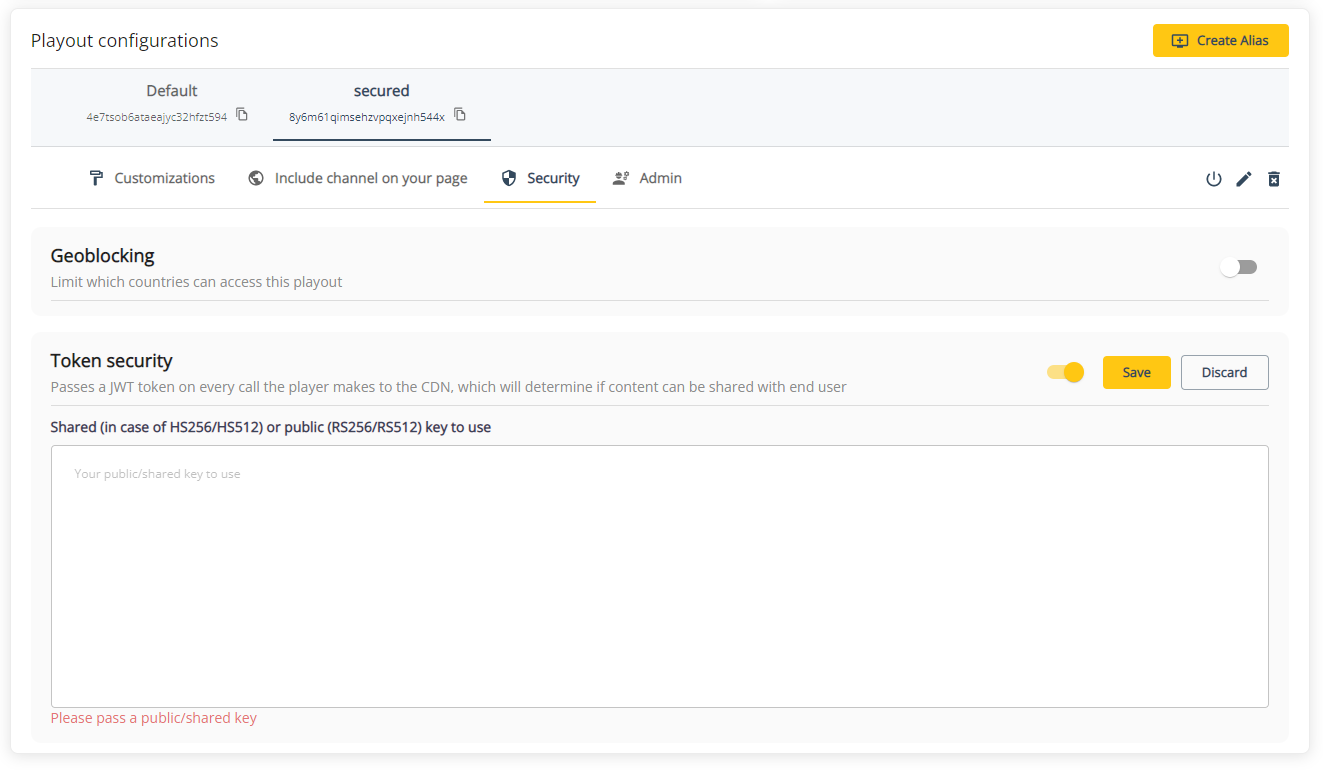

If you're using the THEOlive management console, you can navigate to the player details page and select the alias you want to enable/disable token security for. When enabling, please pass the correct shared or public key to use. Don't forget to confirm your changes by hitting the save button!
Configuring THEOplayer to pass the necessary headers
1. Create a network interceptor
First thing to do is to create a header provider function. In this function you add the Authorization header which contains a bearer token generated by you. This token requires an exp property, and an optional nbf property. If you add other common JWT parameters, the token will still be valid but the values will be ignored. We also support tracking of viewers and viewer groups with tokens, for more detail read our viewer tracking guide.
const interceptor = (request) => {
// Only add 'Authorization' header for THEOlive request to avoid CORS issues
if (new URL(request.url).hostname.endsWith('theo.live')) {
const headers = {
...request.headers,
Authorization: `Bearer <token-generated-by-you>`,
};
request.redirect({
headers,
});
}
};
2. Set the request interceptor
The above-defined interceptors can be added to the player as follows:
player.network.addRequestInterceptor(interceptor);
The player will now include the header in every request that gets made to the CDN to grab content.
Similarly, interceptors can be removed, as follows:
player.network.removeRequestInterceptor(interceptor);
An unauthorized error will occur if no token or an invalid token is passed, preventing users from being able to watch the stream.
Limitations on iOS devices
Apple devices running an iOS version lower than 17.1 do not support MSE, therefore there are limitations with what is possible when playing a THEOlive stream. One such limitation is that the above network interceptor approach does not work on those devices. Instead, a service worker needs to be registered to support playback of JWT enabled streams.
The service worker needs to intercept the fetch requests originating from the app, compute a JWT and attach it as an Authorization header to the request and dispatch it. As mentioned above, the only key in the JWT that we need is the exp, all others are optional and will be ignored by the backend.
A code snippet for the service worker code is shared below.
Service worker registration and the usage of the crypto object (used for signing the JWT) are only possible in a secure environment (https://) or on localhost.
// If you are using a symmetric key, then this is the same key as configured in your console.
const YOUR_JWT_SIGNING_KEY = 'YOUR-SIGNING-KEY-GOES-HERE';
// Service worker events
self.addEventListener('install', () => {
console.log('Service worker installed!');
self.skipWaiting();
});
// Activation event
self.addEventListener('activate', (event) => {
console.log('Service Worker activated');
// Claim clients so the service worker is in effect immediately
event.waitUntil(self.clients.claim());
});
// Service worker events end
// Intercept the fetch event and add in your JWT
self.addEventListener('fetch', (event) => {
event.respondWith(
(async function () {
try {
const url = new URL(event.request.url);
// Only intercept requests made by the player and not other requests
if (url.origin.endsWith('theo.live')) {
// Replace `sign` with your own JWT signing implementation
const jwt = await sign(
{
exp: Math.floor(Date.now() / 1000) + 300, // 5 minutes
},
YOUR_JWT_SIGNING_KEY
);
// Clone the request and add the JWT header
const modifiedRequest = new Request(event.request, {
headers: {
...Object.fromEntries(event.request.headers.entries()),
Authorization: `Bearer ${jwt}`,
},
});
return fetch(modifiedRequest);
}
// For other requests, just pass through
return fetch(event.request);
} catch (error) {
console.error('Error in fetch handler:', error);
return new Response('Service Worker Error', { status: 500 });
}
})()
);
});
And then, to register this service worker in to your code, you can attach it this way.
const registerServiceWorker = () => {
if ('serviceWorker' in navigator) {
// Replace with your own path to the service worker location.
navigator.serviceWorker
.register('./path/to/your/service-worker.js')
.then((reg) => {
if (reg.active) console.log('Service worker registered!');
})
.catch((err) => {
console.error('Could not register service worker!', err);
});
} else {
console.error('Service worker not supported!');
}
};
// Initialise the service worker some time early in the processs.
if (!(window.MediaSource || window.ManagedMediaSource)) {
registerServiceWorker();
}
The snippet above assumes the existence of a function sign(payload, secret) that generates a JSON Web Token (JWT) and signs it using the default HMAC SHA-256 algorithm. (Refer to docs on jwt.io). In pseudo-code :
const sign = async (payload, secret) => {
let header = { alg: 'HS256', typ: 'JWT' };
let message = base64UrlEncode(header) + '.' + base64UrlEncode(payload);
let signature = HMACSHA256(message, secret);
return message + '.' + base64UrlEncode(signature);
};
You can use an existing library like Jose, or you can use our example implementation:
JWT sign function
const base64UrlEncode = (str) => {
return btoa(str).replace(/\+/g, '-').replace(/\//g, '_').replace(/=/g, '');
};
const utf8ToUint8Array = (str) => {
return new TextEncoder().encode(str);
};
const sign = async (payload, secret) => {
const header = { alg: 'HS256', typ: 'JWT' };
const encodedHeader = base64UrlEncode(JSON.stringify(header));
const encodedPayload = base64UrlEncode(JSON.stringify(payload));
const data = `${encodedHeader}.${encodedPayload}`;
const secretBytes = utf8ToUint8Array(secret);
const key = await crypto.subtle.importKey('raw', secretBytes, { name: 'HMAC', hash: { name: 'SHA-256' } }, false, ['sign']);
const signature = await crypto.subtle.sign({ name: 'HMAC' }, key, utf8ToUint8Array(data));
const signatureStr = String.fromCharCode(...new Uint8Array(signature));
return `${data}.${base64UrlEncode(signatureStr)}`;
};
You can validate the token generated by inspecting it using the JWT decoder on JWT.io. The header and payload will be decoded immediately. If you provide your HMAC key, you can validate that the signature is also valid.
If you are using a bundler such as Vite or Rollup etc, you will need to ensure that your service worker also gets copied to our output directory and is registered from the correct path.
